Case Studies

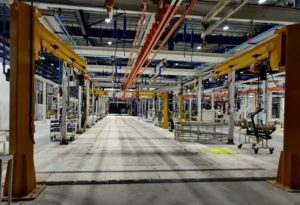

Slat Conveyor inside pit for 3 ton Tractor Assembly line & Inspection line.

Customer had requirement of Slat conveyor as below :

1. Double Strand endless chains, driven by electric motors attached with evenly spaced slats
flush to floor
2. Spare drive arrangement
3. Slat Width – 3.5 m
4. Design Capacity 3 Ton per Tractor
5. Conveyor Chain – Bearing Roller
6. Line Speed – 0.8 to 1.4 m per min
7. Length of Final Assembly Line 74 m
8. Length of Final Inspection Line 26 m
9. Nos. of Stations 15

Tsubaki Conveyor Systems India (TCSI) & Tsubaki Material Handling Japan (TC) had experience of
supplying & installing slat conveyor for various application with maximum Slat width of 1.5 meter. This
was the first Conveyor Designed, Supplied, Installed & successfully Commissioned by TCSI.

TCSI & TC had to demonstrate the stress analysis & load calculation data to customer for approval
during DAP. Then TCSI manufactured the system & temporarily installed at TCSI factory. After successful
trials & customer inspection, it was dismantled & re-assembled at site.

Also, the entire system along with import parts & controls portion was ready for dispatch before the
scheduled timelines.
TCSI is taking periodic feedback from customer & the system is working smoothly & satisfactorily.
